FOR TOYOTA 90368-45087 Tapered Roller Bearing LM 102949
Tapered Roller Bearing Specification
New genuine part Bearing (For Axle Shaft Outer), Toyota, 90368-45087 is
For Car & Auto: Toyota DYNA 150/ TOYOACE G15, Toyota DYNA/ TOYOACE, Toyota GRANVIA/GRAND HIACE, Toyota HIACE, Toyota HIACE TRUCK, Toyota HILUX SURF/ 4RUNNER, Toyota HILUX/4RUNNER TRUCK, Toyota LAND CRUISER, Toyota LEXUS LX, Toyota LITE/ TOWNACE, Toyota LITEACE, Toyota MODEL-F, Toyota PICKUP, Toyota QUICK DELIVERY/ URBAN SUPPORTER, Toyota T100, Toyota TOYOACE/ DYNA, Toyota TOYOACE/ TOWNACE/ MASTERACE/ LITEACE, Toyota VAN
Taper Roller Bearing Description

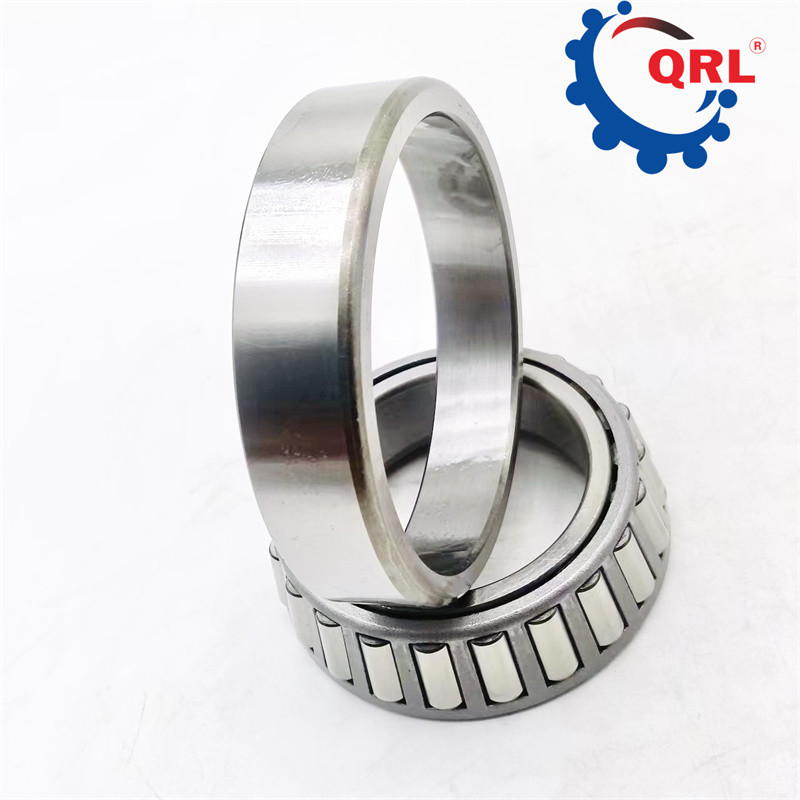

Tapered roller bearings are separable into a cone assembly and a cup. The non-separable cone assembly consists of the inner ring, the rollers, and a cage that retains and evenly spaces the rollers. The cup is simply the outer ring.
Tapered Roller Bearing Product number
| Designation | Dimensions | Basic Load Ratings | Limiting Speed | Mass |
| d | D | T | B | C | r1 | r | Cr | Cor |
| min. | min. | Dynamic | Static |
| SFT | mm | kN | Rpm | g |
| 30203 | 17 | 40 | 13.25 | 12 | 11 | 1 | 1 | 20.7 | 21.9 | 9000 | 79 |
| 30303 | 17 | 47 | 15.25 | 14 | 12 | 1 | 1 | 28.3 | 27.2 | 8500 | 129 |
| 30204 | 20 | 47 | 15.25 | 14 | 12 | 1 | 1 | 28.2 | 30.6 | 8000 | 126 |
| 30304 | 20 | 52 | 16.25 | 15 | 13 | 1.5 | 1.5 | 33.1 | 33.2 | 8000 | 165 |
| 30205 | 25 | 52 | 16.25 | 15 | 13 | 1 | 1 | 32.2 | 37 | 7500 | 154 |
| 30305 | 25 | 62 | 18.25 | 17 | 15 | 1.5 | 1.5 | 46.9 | 48.1 | 6700 | 263 |
| 30206 | 30 | 62 | 17.25 | 16 | 14 | 1 | 1 | 43.3 | 50.5 | 6300 | 231 |
| 30306 | 30 | 72 | 20.75 | 19 | 16 | 1.5 | 1.5 | 59 | 63.1 | 5600 | 387 |
| 30207 | 35 | 72 | 18.25 | 17 | 15 | 1.5 | 1.5 | 54.2 | 63.5 | 5300 | 331 |
| 30307 | 35 | 80 | 22.75 | 21 | 18 | 2 | 1.5 | 75.3 | 82.6 | 5000 | 515 |
| 30208 | 40 | 80 | 19.75 | 18 | 16 | 1.5 | 1.5 | 63 | 74 | 4800 | 422 |
| 30308 | 40 | 90 | 25.25 | 23 | 20 | 2 | 1.5 | 90.9 | 107.6 | 4500 | 747 |
| 30209 | 45 | 85 | 20.75 | 19 | 16 | 1.5 | 1.5 | 67.9 | 83.6 | 4500 | 474 |
| 30309 | 45 | 100 | 27.25 | 25 | 22 | 2 | 1.5 | 108.9 | 129.8 | 4000 | 984 |
| 30210 | 50 | 90 | 21.75 | 20 | 17 | 1.5 | 1.5 | 73.3 | 92.1 | 4300 | 529 |
| 30310 | 50 | 110 | 29.25 | 27 | 23 | 2.5 | 2 | 130.1 | 157.1 | 3600 | 1280 |
| 30211 | 55 | 100 | 22.75 | 21 | 18 | 2 | 1.5 | 90.8 | 113.7 | 3800 | 713 |
| 30311 | 55 | 120 | 31.5 | 29 | 25 | 2.5 | 2 | 153.3 | 187.6 | 3200 | 1630 |
| 30212 | 60 | 110 | 23.75 | 22 | 19 | 2 | 1.5 | 103.3 | 130 | 3400 | 904 |
| 30312 | 60 | 130 | 33.5 | 31 | 26 | 3 | 2.5 | 171.4 | 210 | 3000 | 1990 |
| 30213 | 65 | 120 | 24.75 | 23 | 20 | 2 | 1.5 | 120.6 | 152.6 | 3000 | 1130 |
| 30313 | 65 | 140 | 36 | 33 | 28 | 3 | 2.5 | 195.9 | 241.7 | 2600 | 2440 |
| 30214 | 70 | 125 | 26.25 | 24 | 21 | 2 | 1.5 | 132.3 | 173.6 | 3000 | 1260 |
| 30314 | 70 | 150 | 38 | 35 | 30 | 3 | 2.5 | 21.9 | 271.7 | 2400 | 2980 |
Taper Roller Bearings Applications
Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. In recent years, our company has introduced a series of advanced equipment including double-end face grinding machine etc., flaw detector...In addition, we have obtained ISO9001: 2008 certificates. Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as Europe, America, Middle East, Africa and Southeast Asian.
