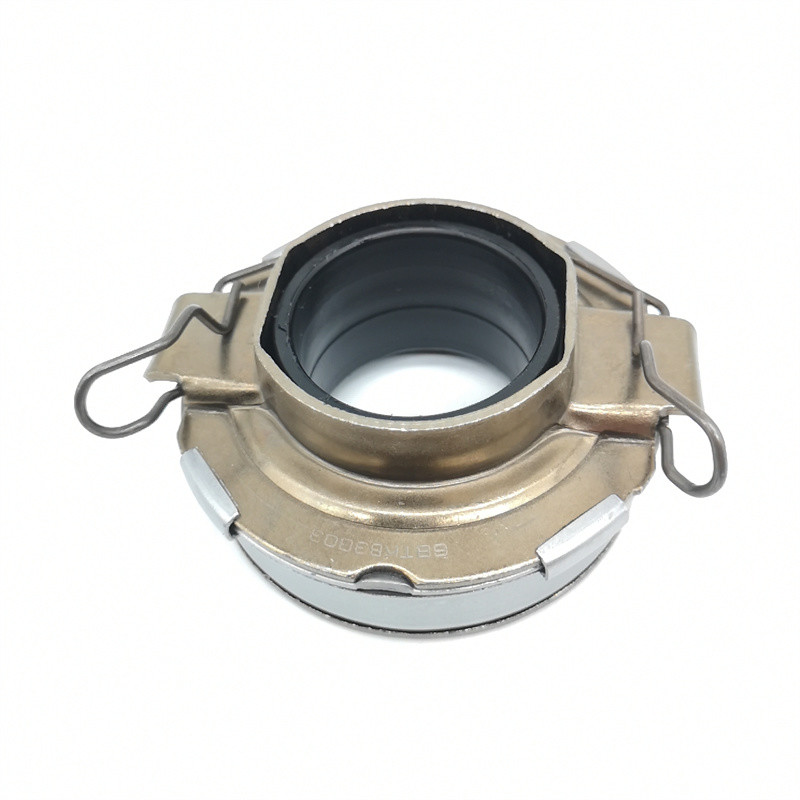

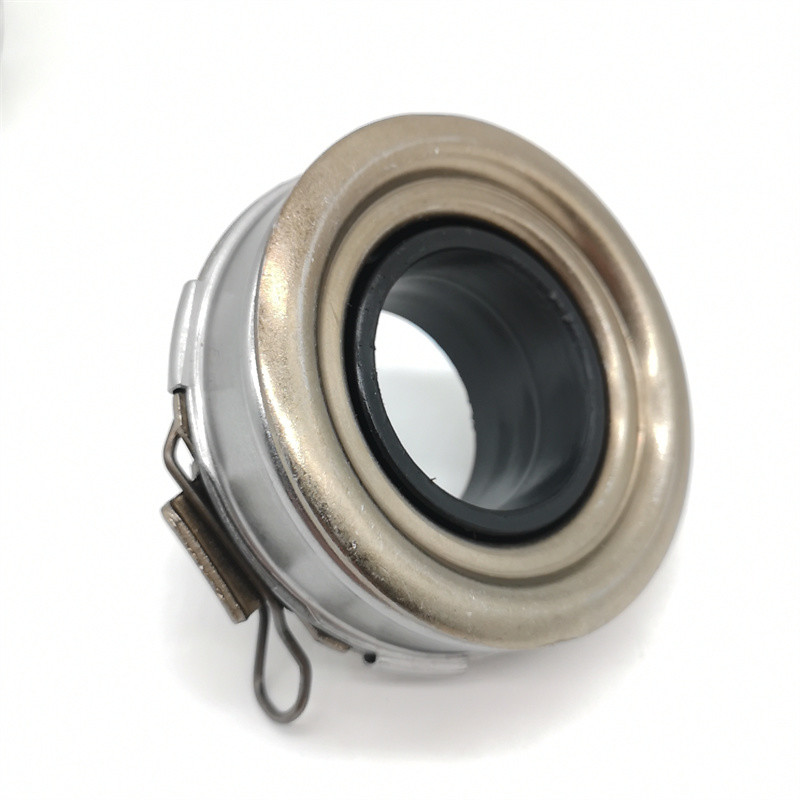

OEM Clutch Release Bearing 31230-37010 68TKB3803 for Toyota Coaster

  • 1
  • 2

Brand Name : QRL

Model Number : 31230-37010

Certification : ISO9001:2008

Place of Origin : CHINA

Price : Negotiable

Payment Terms : L/C, D/A, D/P,

Supply Ability : 10000

Delivery Time : 8-12 Working

Packaging Details : Carton/woven bag

Type : Clutch Release Bearing

Number : 31230-37010

Product name : 68TKB3803AR

Applicable models : For TOYOTA COSTER

Weight : 0.379 kg/pcs

Brand : Oem

Size : Standard size

Contact Now



68TKB3803 TOYOTA COSTER 97 Clutch Release Bearing 31230-37010





Clutch Release Bearing Specification



  Item Description 68TKB3803 / 31230-37010 auto parts clutch Bearing for Coaster
  Size Standard
  OE or Application Coaster
  OEM No.&Ref No. 68TKB3803
  Weight Standard
  Material steel
  Certification ISO and TS 16949
  Warranty At least 12 Months




Clutch Release Bearing Description


The clutch release bearing is installed between the clutch and the transmission. The release bearing seat is loosely sleeved on the tubular extension of the first shaft bearing cover of the transmission. The shoulder of the release bearing is always against the release fork through the return spring and retracts to the final position. , Keep a gap of about 3~4mm with the end of the separation lever (separation finger).
Since the clutch pressure plate, the release lever and the engine crankshaft operate synchronously, and the release fork can only move axially along the output shaft of the clutch, it is obviously impossible to directly use the release fork to dial the release lever. The release bearing can make the release lever rotate side by side. The output shaft of the clutch moves axially, which ensures that the clutch can engage smoothly, disengage softly, reduce wear, and extend the service life of the clutch and the entire drive train.



Clutch Release Bearing Product number





OEM KOYO NACHI NSK NTN GMB SKF
31230-35070 RCT356SA6 50SCRN40P-4 50TKB3505BR   GC71017 VKC3615
31230-35090 RCT356SA9   50TKB3504BR   GC71006 VKC3616
31230-36160   68SCRN46P-2     GC71026 VKC3644
31230-36200   68SCRN63P-2     GC71025 VKC3647
31230-52020 RCT337SA3-3 50SCRN28P-5 50TKB3301BR   GC71040 VKC3556
31230-60120     68TKB3802AR   GC71050 VKC3645
31230-60130   68SCRN58P
31230-60150   68SCRN48P   68SCRN46 GC71044
31230-60170   58SCRN37P 58TKB3505RA
31230-87504 RCT282SA   44TKZ2801D FCR44-25-3/2E
31230-87505 RCT282SA   44TKZ2801D FCR44-25-3/2E



Clutch Release Bearing Precautions

1. According to the operating regulations, avoid the clutch half-engaged and half-disengaged, and reduce the number of times the clutch is used.
2. Pay attention to maintenance. Use the steaming method to soak the butter so that it has sufficient lubricant during regular or annual inspection and maintenance.
3. Pay attention to leveling the clutch release lever to ensure that the elastic force of the return spring meets the requirements.
4. Adjust the free stroke to meet the requirements (30-40mm) to prevent the free stroke from being too large or too small.
5. Minimize the number of joining and separation, and reduce the impact load.
6. Step on it lightly and easily to make it join and separate smoothly.
