Home > Clutch Release Bearing >

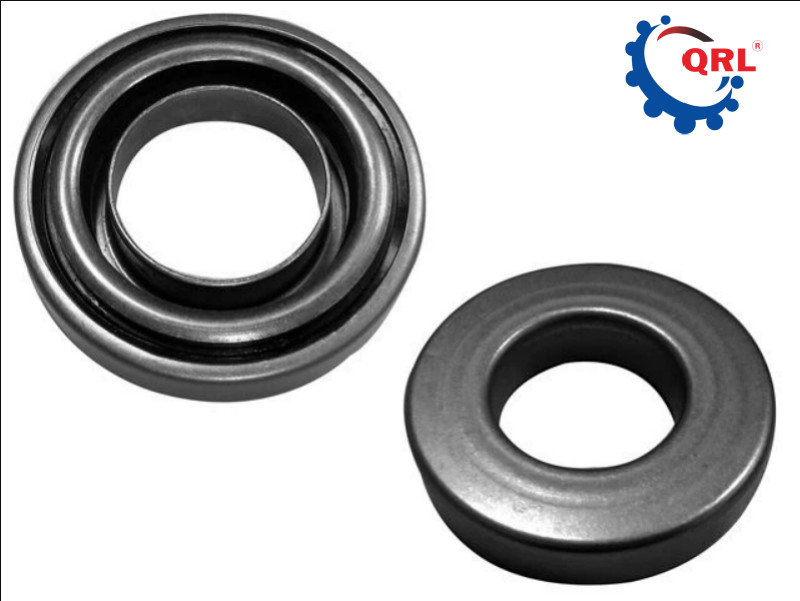

8-94379-499-0 Clutch Release Bearing RCT422SA Chrome Steel GCR15 Material

Product Categories
Guangzhou Zhonglu Automobile Bearing Co., LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

8-94379-499-0 Clutch Release Bearing RCT422SA Chrome Steel GCR15 Material

  • 1
  • 2

Brand Name : QRL

Model Number : RCT422SA

Certification : ISO9001

Place of Origin : CHINA

Price : Negotiable

Payment Terms : L/C, D/A, D/P,

Supply Ability : 60000

Delivery Time : 7-10 Working

Packaging Details : Carton/woven bag

Type : Clutch Release Bearing

Applicable models : For Isuzu

OEM : 8-94379-499-0

Size : 42.13x60x18.92

Weight : 0.421 kg/pcs

Number : RCT422SA

Material : Chrome Steel GCR15

Brand : OEM packing

Contact Now



For ISUZU 8-94379-499-0 Clutch Release Bearing RCT422SA





Clutch Release Bearing Specification



Product name
Car Accessories Auto Clutch Release Bearing RCT422SA For ISUZU
Model No.
RCT422SA
Bearing Type
Auto Clutch Release Bearing
Bearing Material
Chrome Steel
Bearing Cage
Steel, Brass, Nylon
Bearing Precision
P0 P6 P5 P4 P2
Keywords
Auto Clutch Release Bearing RCT422SA


Clutch Release Bearing Description


The clutch release bearing is installed between the clutch and the transmission. The release bearing seat is loosely sleeved on the tubular extension of the first shaft bearing cover of the transmission. The shoulder of the release bearing is always against the release fork through the return spring and retracts to the final position. , Keep a gap of about 3~4mm with the end of the separation lever (separation finger).
Since the clutch pressure plate, the release lever and the engine crankshaft operate synchronously, and the release fork can only move axially along the output shaft of the clutch, it is obviously impossible to directly use the release fork to dial the release lever. The release bearing can make the release lever rotate side by side. The output shaft of the clutch moves axially, which ensures that the clutch can engage smoothly, disengage softly, reduce wear, and extend the service life of the clutch and the entire drive train.



Clutch Release Bearing Product number



QRL No. Parts No. NSK NTN KOYO NACHI
QRL-ISUZU/6 5-31314-001 54TKA3501   RCT401SA
QRL-ISUZU/7 1-09820-078-0 78TKC5401
QRL-ISUZU/8 9-00095-038-1 TK45-4U3 45TMK804X CT45-1S 45TNK804
QRL-ISUZU/9 1-09820-008-0
9-00095-038-1		 TK55-1A1U3 55TMK804X/2E CT55BL1 55TMK804
QRL-ISUZU/10 9-00095-044-1 TK70-1A1U3 SF1412/2E CT70B/L1 70TNK-1
QRL-ISUZU/11 8-97209-197-0 48TKB3204R
QRL-ISUZU/12 8-97333-487-0 48TKB3205
QRL-ISUZU/13 8-97089-652
8-97013-553		 78TKL4001AR
QRL-ISUZU/14 8-97255-313-0 78TKL4801R
QRL-ISUZU/15 8-94377-417-1 68TKP3201
QRL-ISUZU/16 8-97316-591-0 60TKZ3201
QRL-ISUZU/17 8-94133-417 48TKA3211
QRL-ISUZU/18 8-97316-602-0 60TKZ3503R
QRL-ISUZU/19 1-31310-022-0 106TKL6101RA1
QRL-ISUZU/20 1-31310-012-0 81TKL4801R


Clutch Release Bearing Precautions

1. According to the operating regulations, avoid the clutch half-engaged and half-disengaged, and reduce the number of times the clutch is used.
2. Pay attention to maintenance. Use the steaming method to soak the butter so that it has sufficient lubricant during regular or annual inspection and maintenance.
3. Pay attention to leveling the clutch release lever to ensure that the elastic force of the return spring meets the requirements.
4. Adjust the free stroke to meet the requirements (30-40mm) to prevent the free stroke from being too large or too small.
5. Minimize the number of joining and separation, and reduce the impact load.
6. Step on it lightly and easily to make it join and separate smoothly.


8-94379-499-0 Clutch Release Bearing RCT422SA Chrome Steel GCR15 Material8-94379-499-0 Clutch Release Bearing RCT422SA Chrome Steel GCR15 Material
