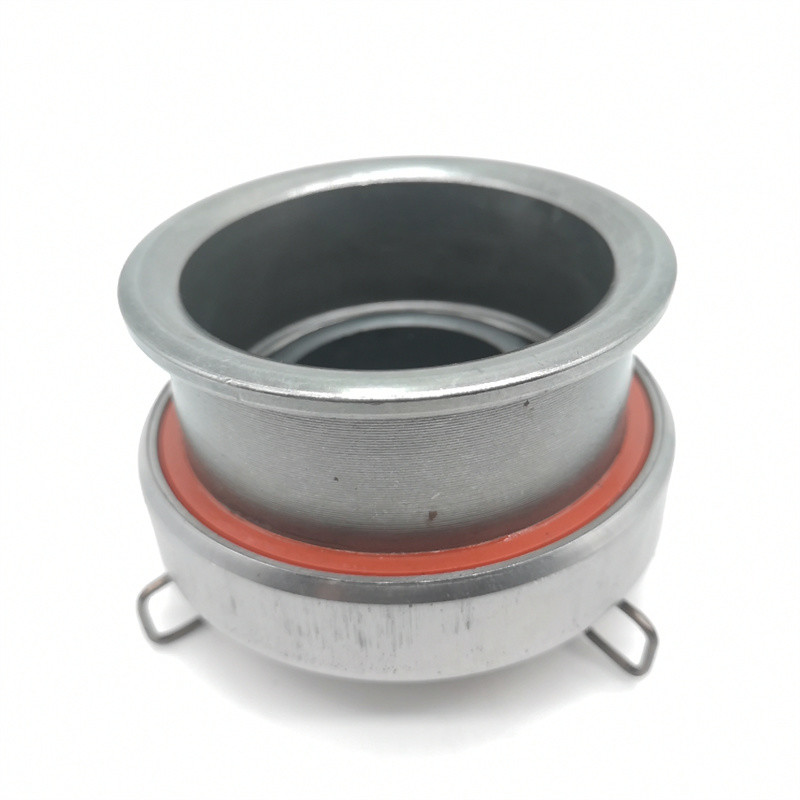

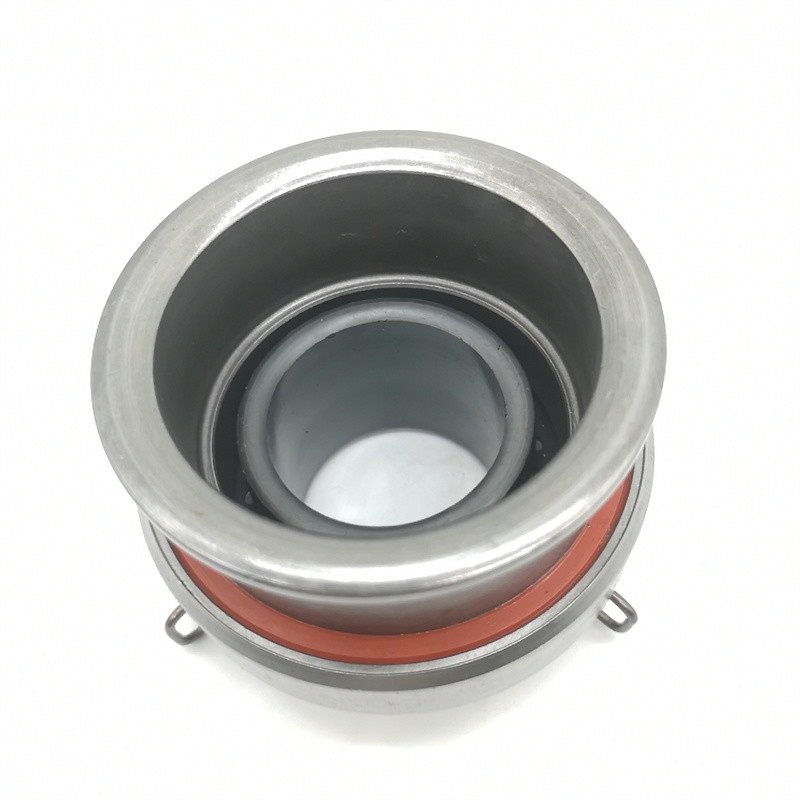

68SCRN57P Clutch Release Bearing 31230-60200 31230-60201 ISO9001 Certification

  • 1
  • 2

Brand Name : QRL

Model Number : 31230-60200, 31230-60201 68SCRN57P

Certification : ISO9001

Place of Origin : CHINA

Price : Negotiable

Payment Terms : L/C, D/A, D/P,

Supply Ability : 10000

Delivery Time : 8-12 Working

Packaging Details : Carton/woven bag

Type : Clutch Release Bearing

Number : 31230-60200

Product name : 31230-60201

Applicable models : For TOYOTA LANDCRUISER HZJ78 HZJ79

Size : 35MM

Weight : 0.435 kg/pcs

Brand : Oem/QRL/Neutral

Contact Now



68SCRN62P Clutch release bearing for Toyota 31230-36200





Clutch Release Bearing Specification



Product name   Clutch Release Bearing
Size OEM Standard
Warranty 1 Year
Application

FOR  LAND CRUISER
Quality 100% Tested
Packing Original packing,neutral packing


Clutch Release Bearing Description


The clutch release bearing is installed between the clutch and the transmission. The release bearing seat is loosely sleeved on the tubular extension of the first shaft bearing cover of the transmission. The shoulder of the release bearing is always against the release fork through the return spring and retracts to the final position. , Keep a gap of about 3~4mm with the end of the separation lever (separation finger).
Since the clutch pressure plate, the release lever and the engine crankshaft operate synchronously, and the release fork can only move axially along the output shaft of the clutch, it is obviously impossible to directly use the release fork to dial the release lever. The release bearing can make the release lever rotate side by side. The output shaft of the clutch moves axially, which ensures that the clutch can engage smoothly, disengage softly, reduce wear, and extend the service life of the clutch and the entire drive train.



Clutch Release Bearing Product number



QRL No. Parts No. NSK NTN KOYO NACHI
QRL-TOYOTA/1 31230-36200       68SCRN62P
QRL-TOYOTA/2 31230-32020 60TKA3502U3   RCT351SA4 60SCRN3303
QRL-TOYOTA/3 31230-20200
QRL-TOYOTA/4 90363-52018 TK52Z-1B 52TMK804 CT52A-1 BC11S3
QRL-TOYOTA/5 31230-52010/11/20/40
31230-16060/80		 50TKZ3301GRA/FR   RCT337SA3-2


Clutch Release Bearing Precautions

1. According to the operating regulations, avoid the clutch half-engaged and half-disengaged, and reduce the number of times the clutch is used.
2. Pay attention to maintenance. Use the steaming method to soak the butter so that it has sufficient lubricant during regular or annual inspection and maintenance.
3. Pay attention to leveling the clutch release lever to ensure that the elastic force of the return spring meets the requirements.
4. Adjust the free stroke to meet the requirements (30-40mm) to prevent the free stroke from being too large or too small.
5. Minimize the number of joining and separation, and reduce the impact load.
6. Step on it lightly and easily to make it join and separate smoothly.
